From shed to showroom

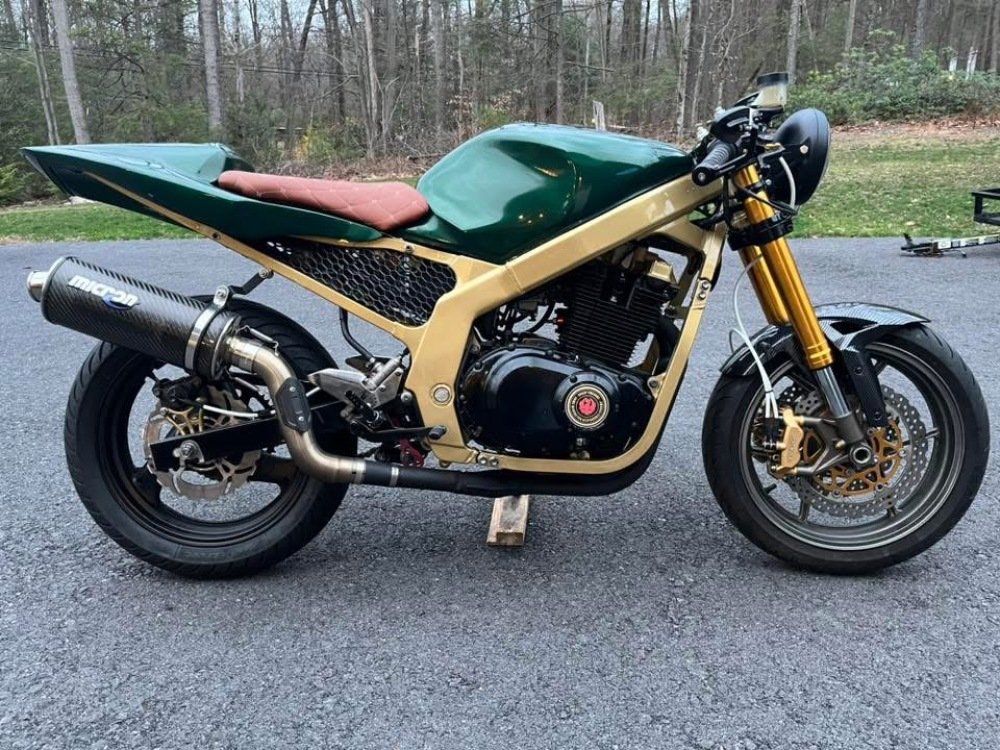

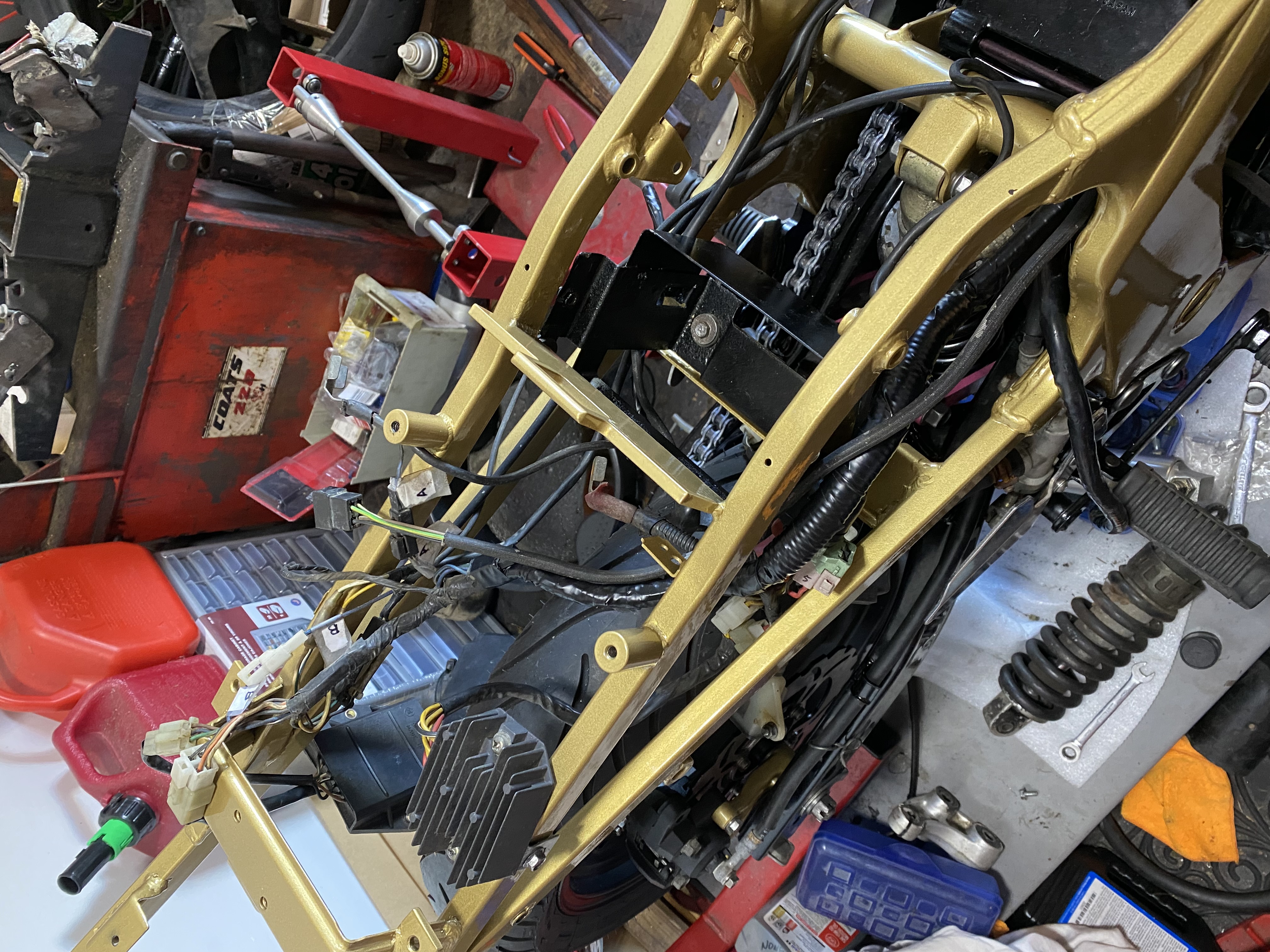

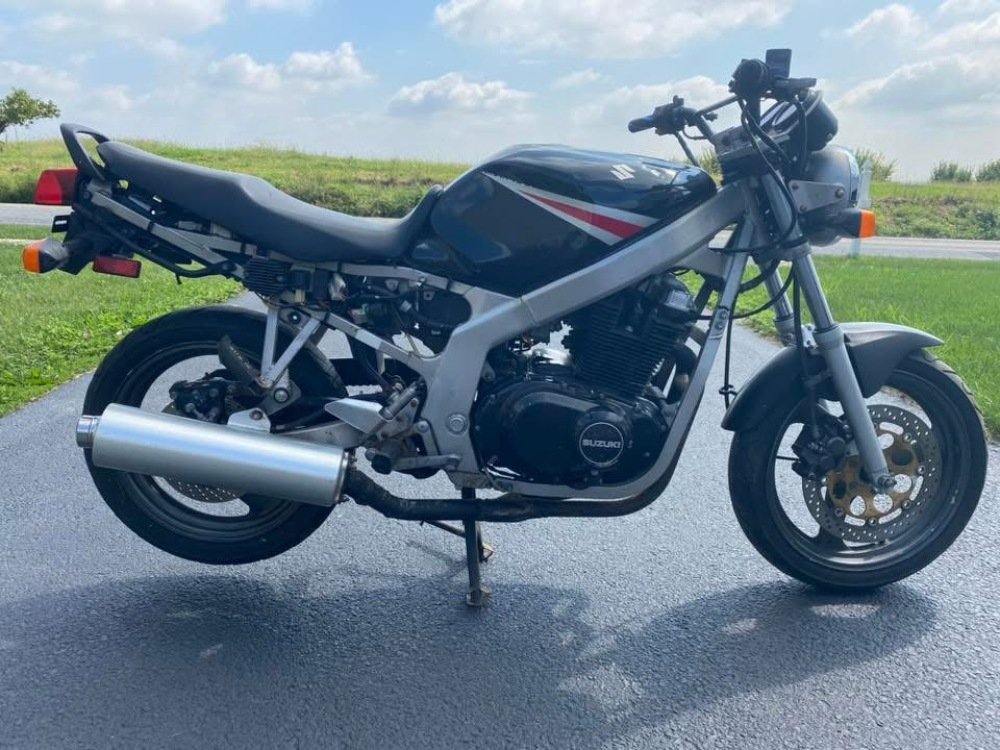

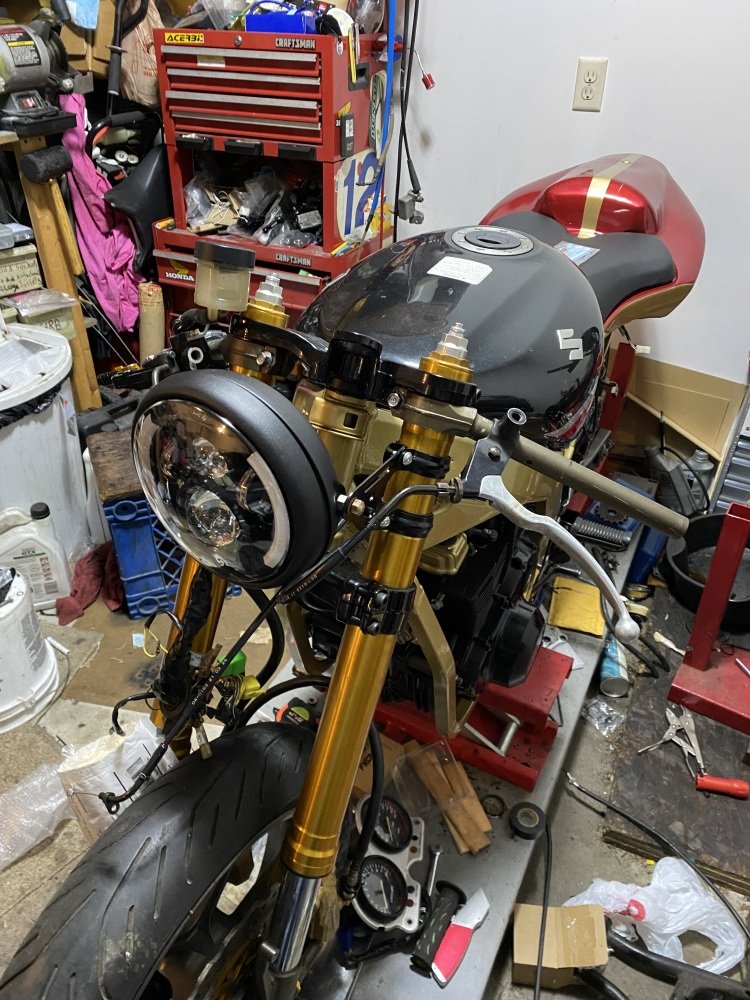

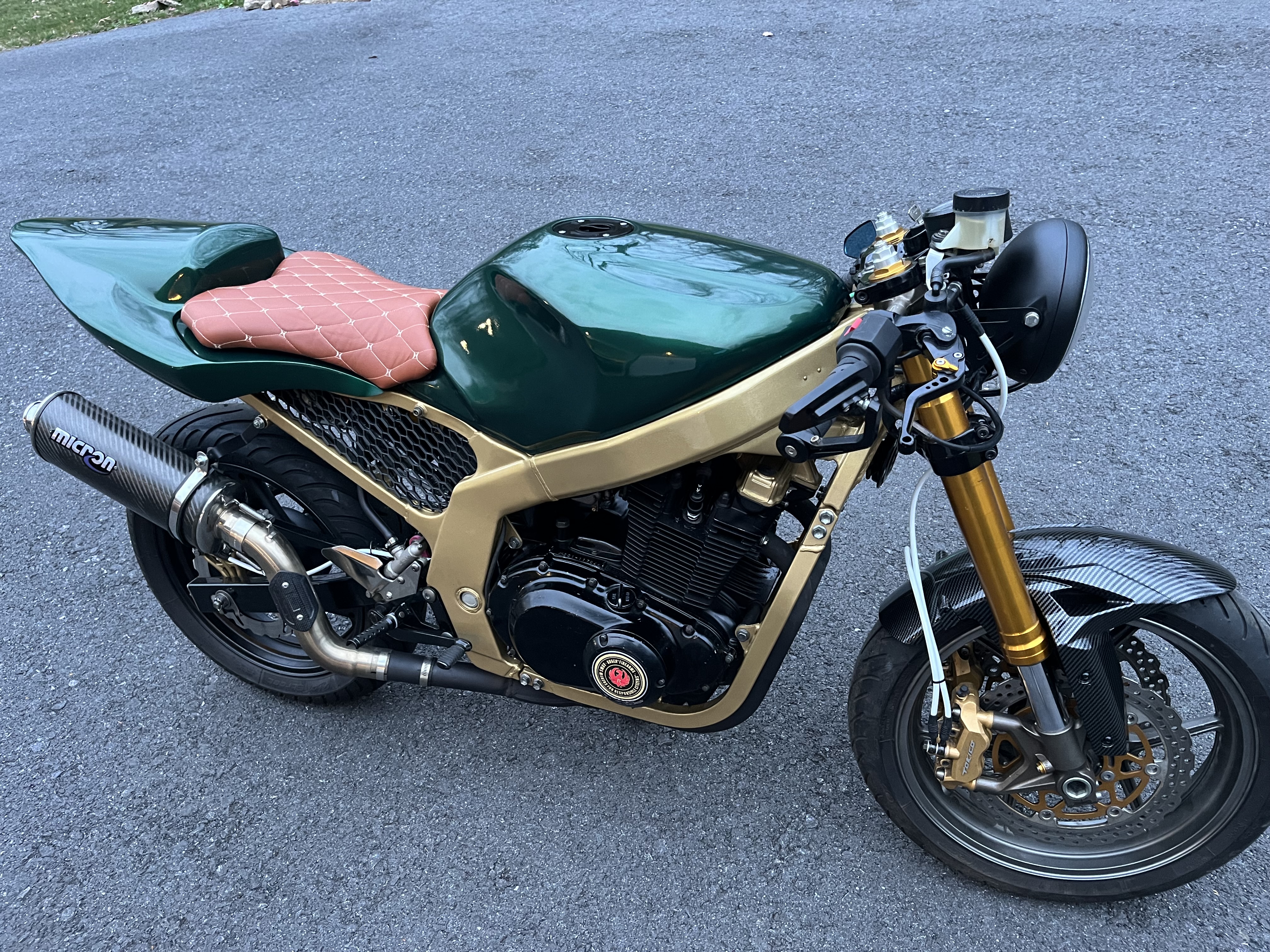

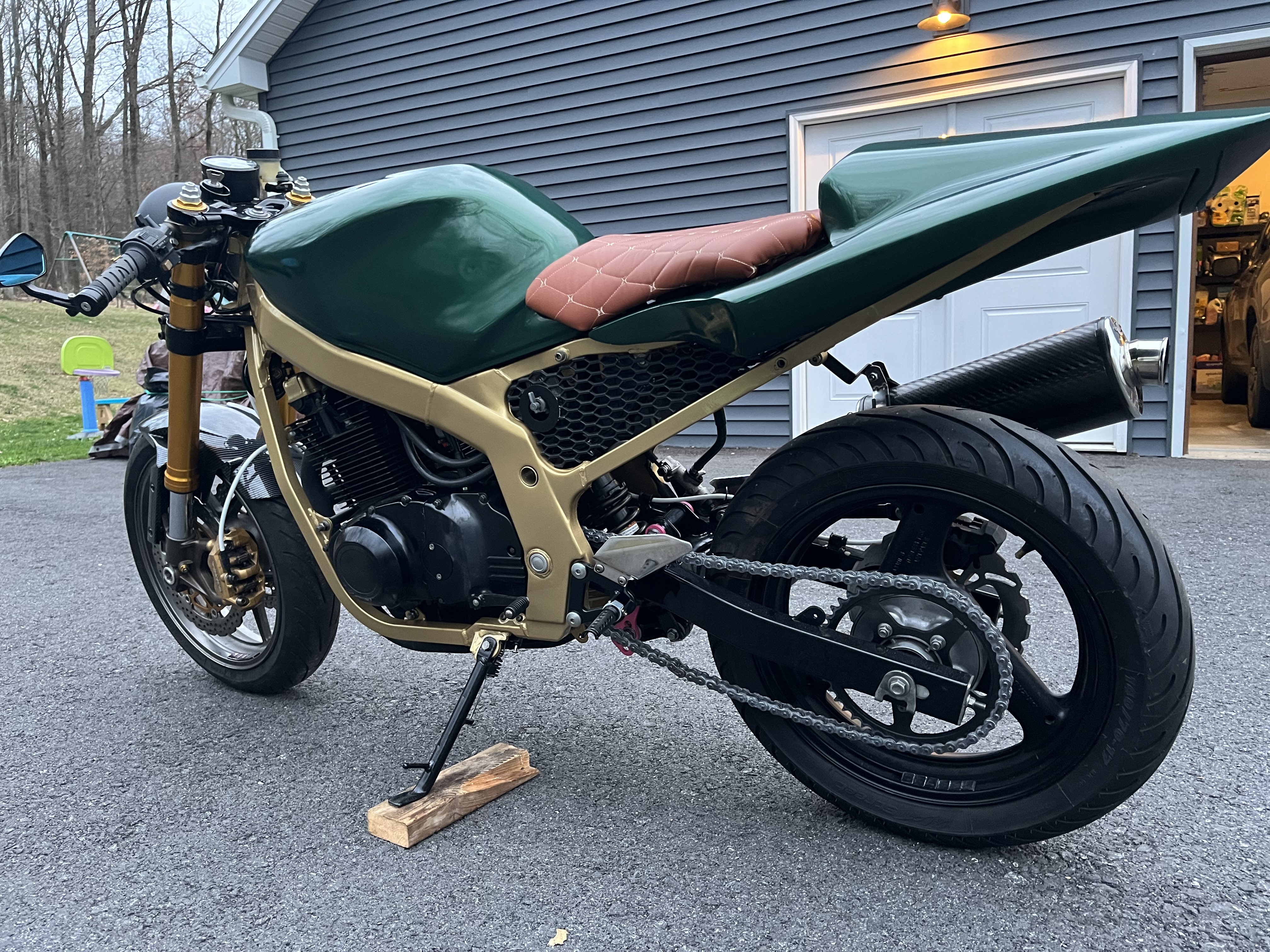

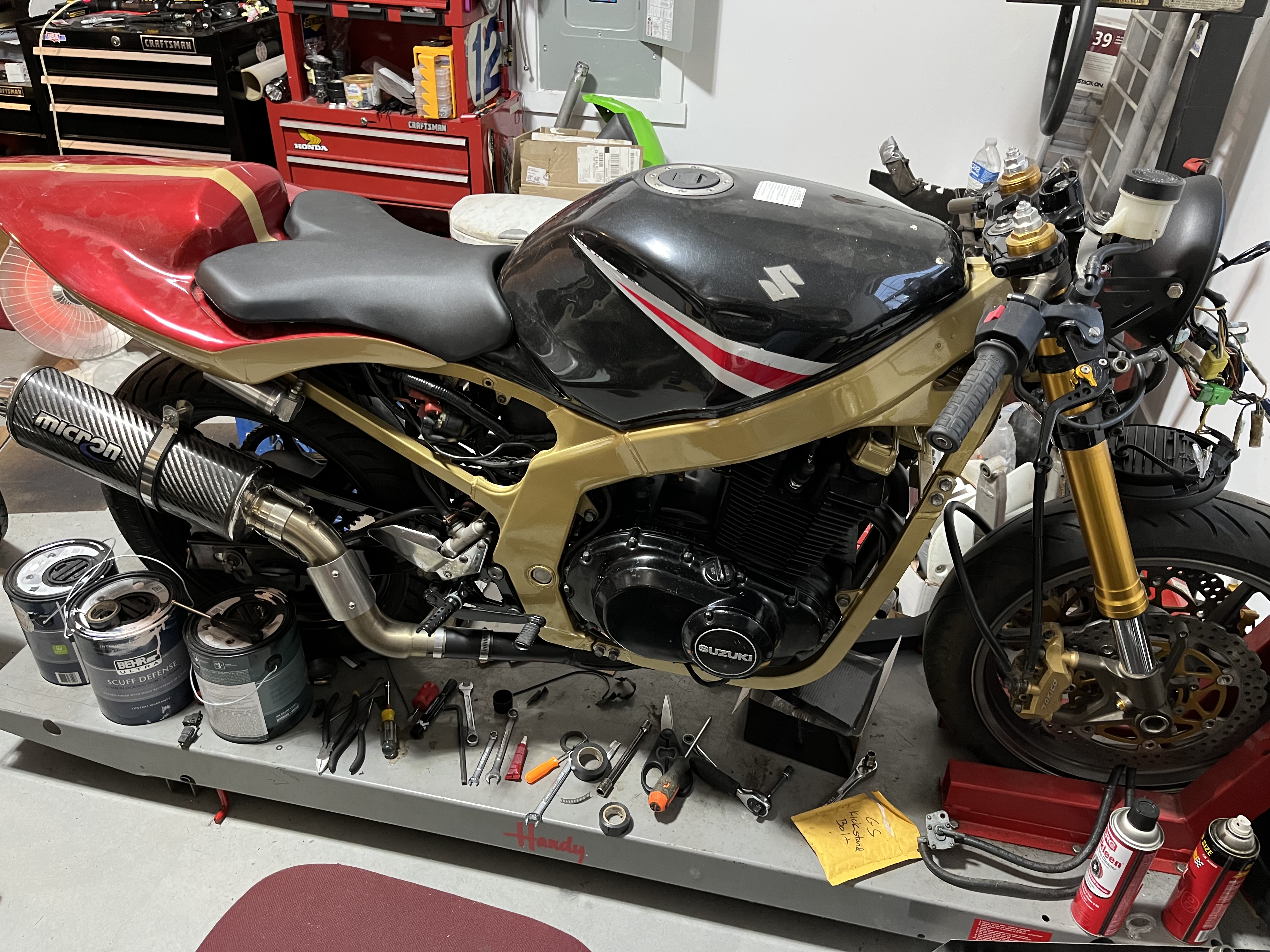

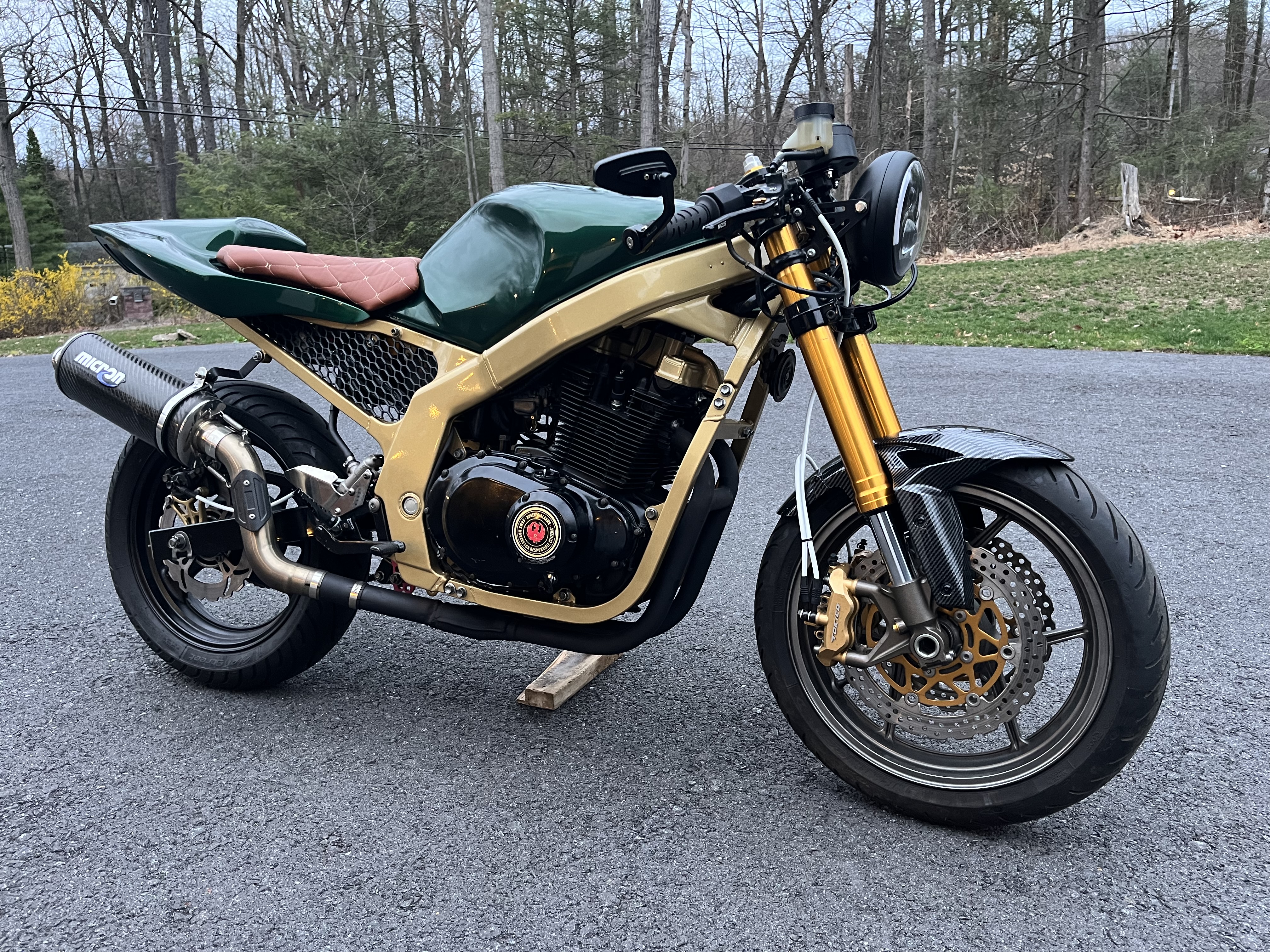

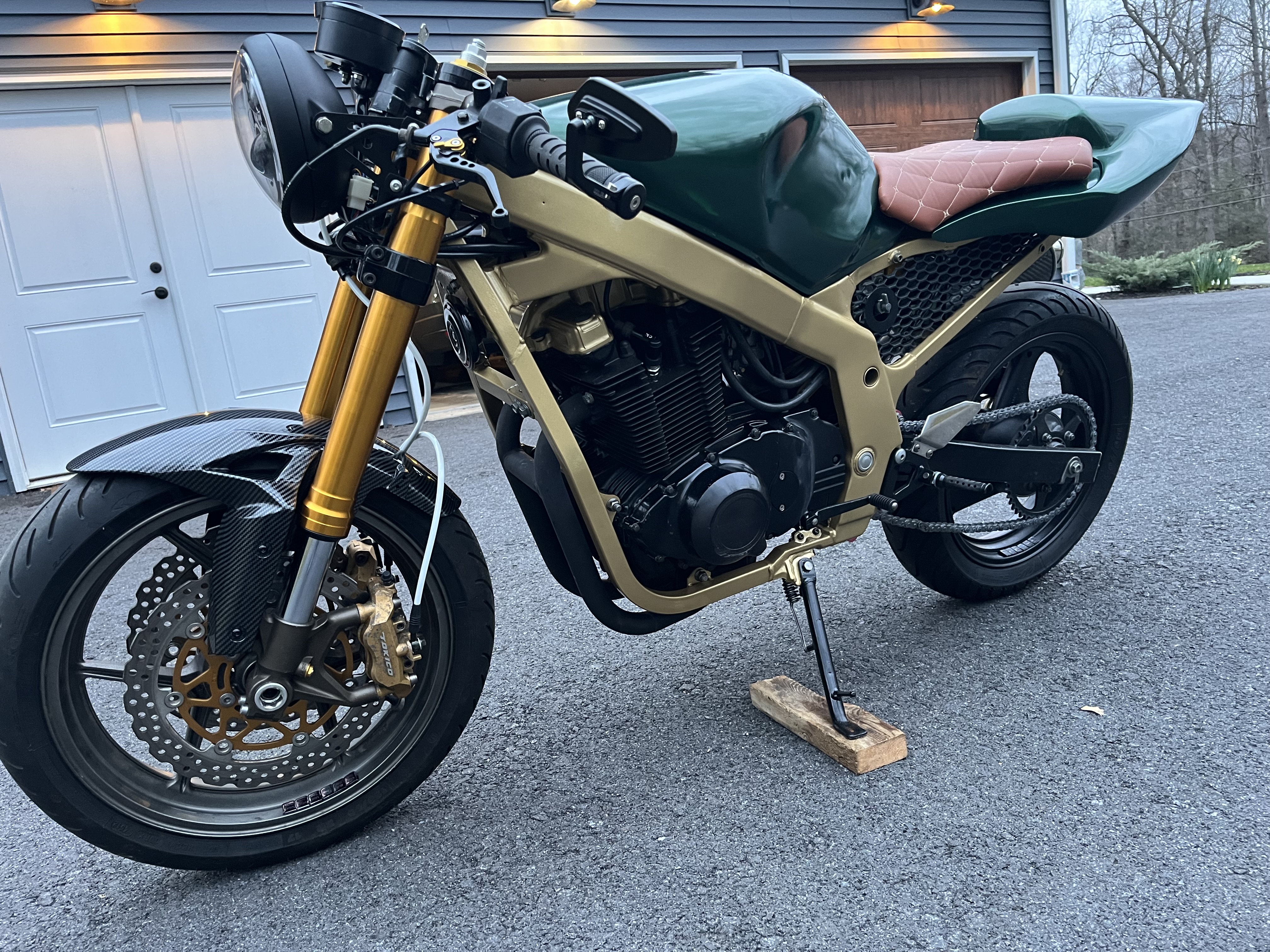

What started as a 1991 Suzuki GS500E, transformed into a more modern sport cafe bike. 06 ZX6R forks and wheel, the stock hollow steering tree stem was replaced with machined solid stem. The tail and undertail is from a 04 Yamaha R6. It required some cutting and welding of the frame. The exhaust is from a 04 ZX10R, which was cut down a little shorter and repacked. The rear shock is from a first gen Suzuki SV650. The dog bone linkage is homemade. Front brake master is off a CBR929rr. The large stock speedometer/tach was replaced to be digital, which includes gear indicator. The GS500 required a GN125 indicator at the shifter. The headlight is LED, which also holds integrated turn signals. The tail light has integrated LED turn signals. The GS500 also required a homemade undercarriage to hold the electrical in the rear. The seat was recovered. Much much more went into this bike.
